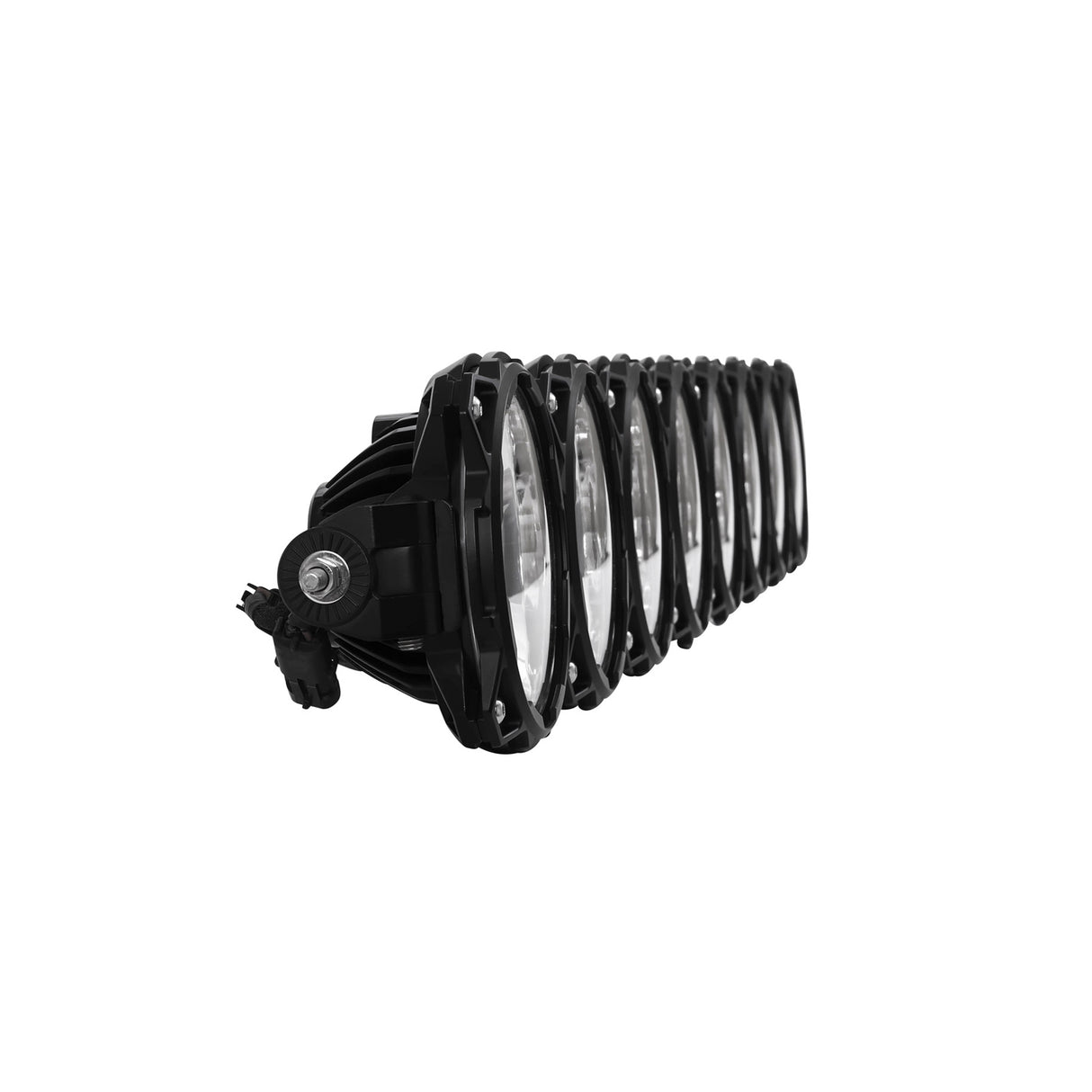

50" PRO6 GRAVITY® LED - 8-LIGHT - LIGHT BAR SYSTEM - 160W COMBO BEAM - FOR 18-23 JEEP JL / JT - #91336

Light bar ships directly from KC hiLites

Please register your product for full warranty

FEATURES

- Pro6 patented Infinity Ring™ System: Easily transform the Pro6 light bar between straight or curved light orientations

- Every Pro6 is powered by KC patented Gravity® Reflective Diode(GRD) technology for unparalleled beam shape, light performance, and clarity

- Gravity® G6 LED reflector optics utilizing a combination of Driving and Wide-40 Beam pattern lights for optimal lighting balance and performance

- Modular design is expandable to different size widths and beam patterns to suit specific applications

- Light Bar in 50" 8-Ring

NOTES

-Does not fit Jeep 4xe, Mojave, Sand Runner or 392 Editions

LIGHT PERFORMANCE

- Raw Lumens: 50" = 18,400 lm

- Lux @ 10 Meters: 50" = 6,700 lx

- Candela: 50" = 670,000 cd

- Beam Distance (Meters): 50” = 1,637m

SPECIFICATIONS

- Wattage: 50" =160W

- Amp Draw: 5.0-14.67A

- LED Source: Cree XPL HD LED

- LED Color: 5000K

- Voltage: 9-32V

- IP Rating: IP68 - Dimensions: 50” 8-Light = H - 6.06" x D - 3.33" x W - 51.625"

PARTS INCLUDED

-(2) Jeep Wrangler JL / Gladiator JT Overhead Light Bar Mounting Brackets (driver and passenger sides)

-(2) Jeep Wrangler JL / Gladiator JT Add-On, A-Pillar Light Mounting Tabs

-(1) Gravity® Pro6 LED Light Bar

-(8) Light Covers; Black with Yellow KC Logo

-(1) Performance Plug-N-Play Wiring Harness with Illuminated LED Switch

PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY

Each Gravity® LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry-leading technology and reflector design assure that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off-road use. Unlike traditional forward-facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance, and beam shape.

PATENTED INFINITY RING™ SYSTEM

As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars to feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6" Pro6 LED lights together to form a rigid, powerful LED light bar system. The unique hinge and bolt design in every ring allow for endless modularity, expandability, and adjustability to suit your lighting needs. This means the seamless transition between straight, radius, or hybrid radius light bar orientations to angle lights exactly how you see fit.

COMBO BEAM PATTERN FOR COMPLETE LIGHTING COVERAGE

Gravity LED Pro6 light bars are specifically configured using a combination of SAE/ECE Driving and Wide-40 G6 LED optical inserts. The combination of different reflector optics provides a broader range of visibility and homogenous light beam shape, for more usable lighting coverage. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide-40 beam offers a wider area of coverage, increasing side to side peripheral visibility. This not only results in incredible light output distance but also evenly balanced light distribution and beam shape that translates to light output that you can actually use for all of your off-road lighting adventures.

RACE-TESTED DURABILITY AND CONSTRUCTION

Inspired by endurance racing and tested by KC endurance racers worldwide, the Pro6 is set to break all performance barriers while providing the most durable, robust and scalable LED light bar design available today.
